DAWES Mojav-E Electric Trekking Bike - Grey, 15.5MPH

DAWES Mojav-E Electric Trekking Bike - Grey, 15.5MPH

Regular price £999.99 GBP
Regular price £1,399.99 GBP Sale price £999.99 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Assembly Options

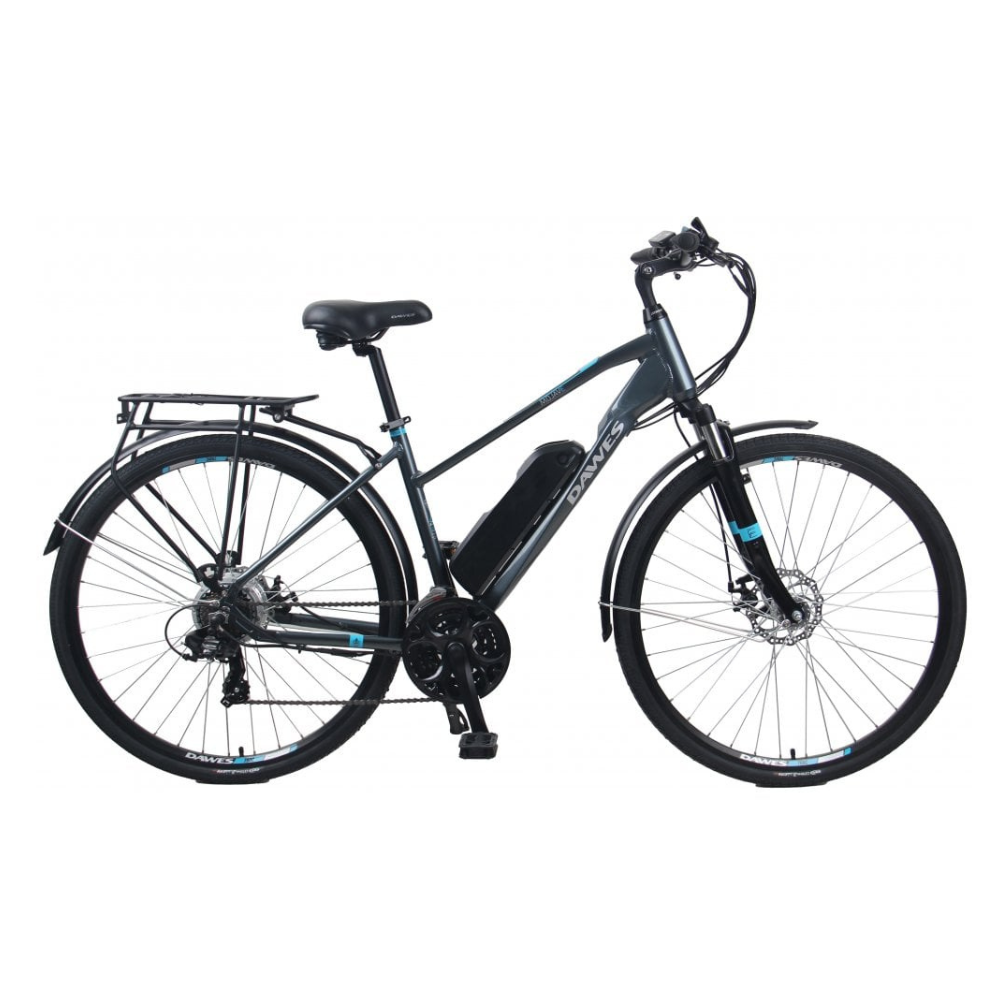

DAWES Mojav-E Electric Trekking Bike

The DAWES Mojav-E Electric Trekking Bike is the epitome of versatility and reliability for outdoor exploration. Powered by a robust Bafang 36V 250W motor, it effortlessly navigates varied terrain with ease and efficiency. Equipped with Shimano RD-TY300 21-speed gearing, riders can smoothly transition through gears for optimal performance on any route.

The bike ensures safety and control with its mechanical disc brakes featuring 160mm rotors, providing reliable stopping power in all conditions. Its 700 x 38C multi-terrain hybrid tyres offer stability and traction on diverse surfaces, from city streets to rugged trails. With a range of up to 28 miles (45km) on a single charge, adventurers can embark on longer journeys with confidence. The DAWES Mojav-E promises an exhilarating and comfortable trekking experience, perfect for outdoor enthusiasts seeking adventure and exploration.

Plus FREE delivery to UK Mainland when you spend over £500 from Power Drive Bikes today.

What's Included?

  • DAWES Mojav-E Electric Trekking Bike - Grey
  • FREE delivery to UK mainland
  • 85% or 99% assembled as per the option taken
  • Manufacturers One year warranty

Hub Drive & Torque Rating

The CLAUD BUTLER Haste-E Electric Mountain Bike is a rear wheel hub drive bike. This means that the drive motor is positioned in the rear wheel hub of the bike and has specific rider qualities for that type of drive.

Torque Rating  - 32 Nm - Provides good power performance

Further information on the drive type benefits of electric bikes is available in ‘A Guide to Electric Bike Motors and Drive Types’ in our guides section of the home page.

Further information on the torque ratings of electric bikes is available in 'A Guide To Understanding Torque in 250W Electric Bike Motors' in our guides section of the home page.

Specifications



Maximum Range

28 miles / 45km

Recharge Time

5 hours

Maximum Assisted Speed

15.5mph / 25kmh

Motor

Bafang 36V 250W motor

Motor Type

Rear hub motor

Motor Torque

32nm

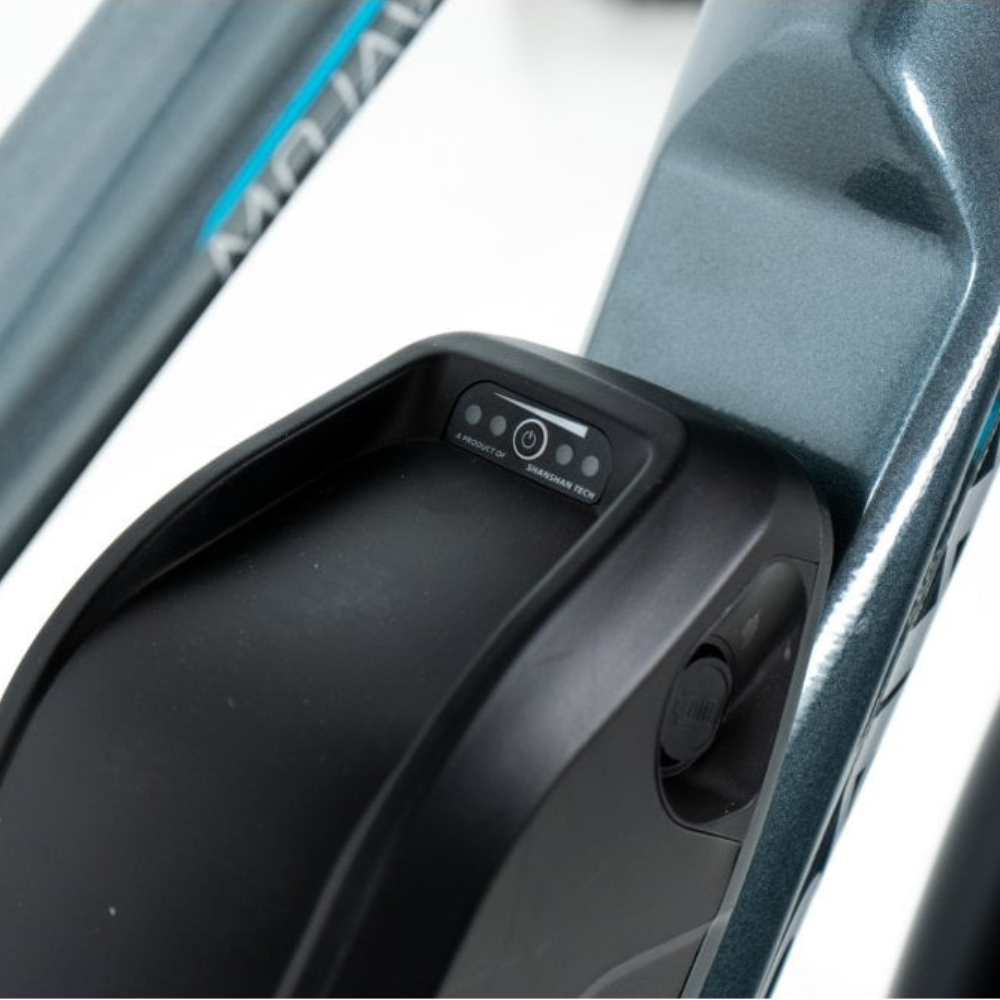

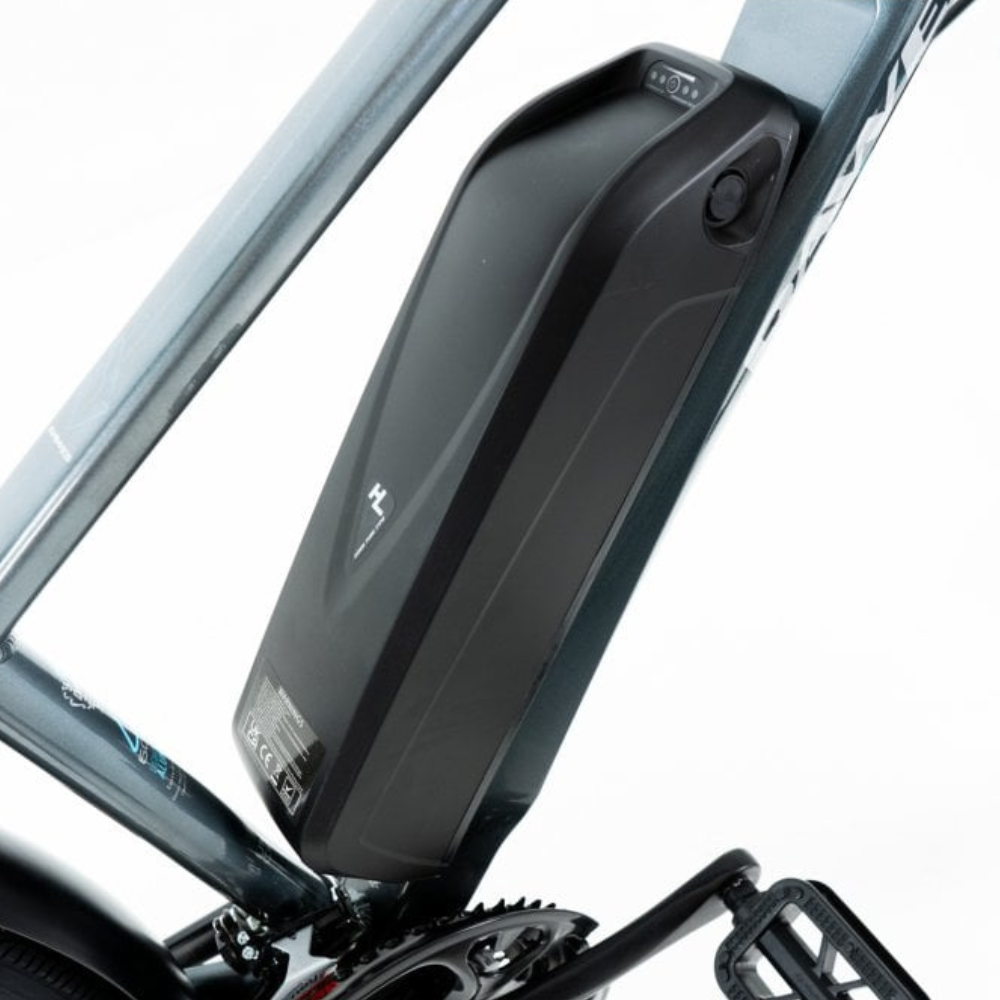

Battery

360Wh (36V 10Ah)

Battery Type

Frame mounted - removable

Charger

3 pin UK plug

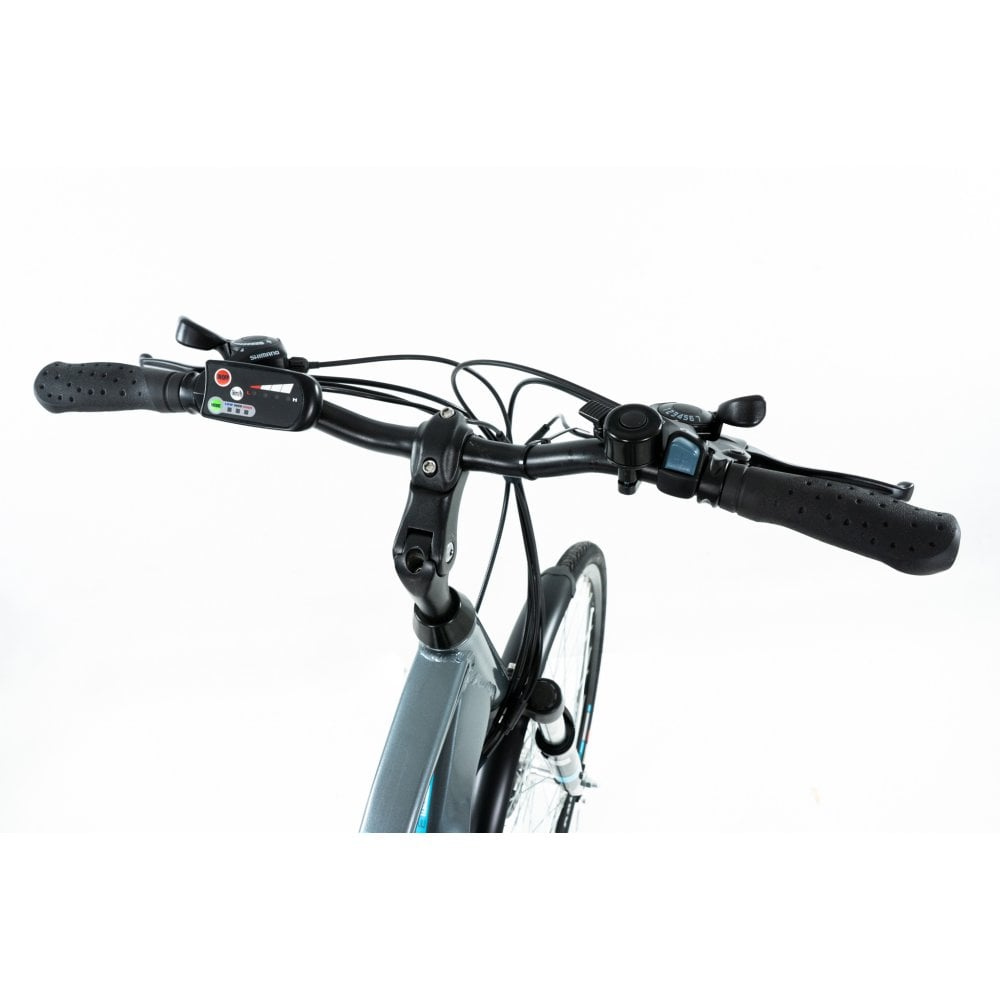

Display

Handlebar mounted LED display, 3 level power assist & walk assist

Speed Sensor

12 point pedal sensor

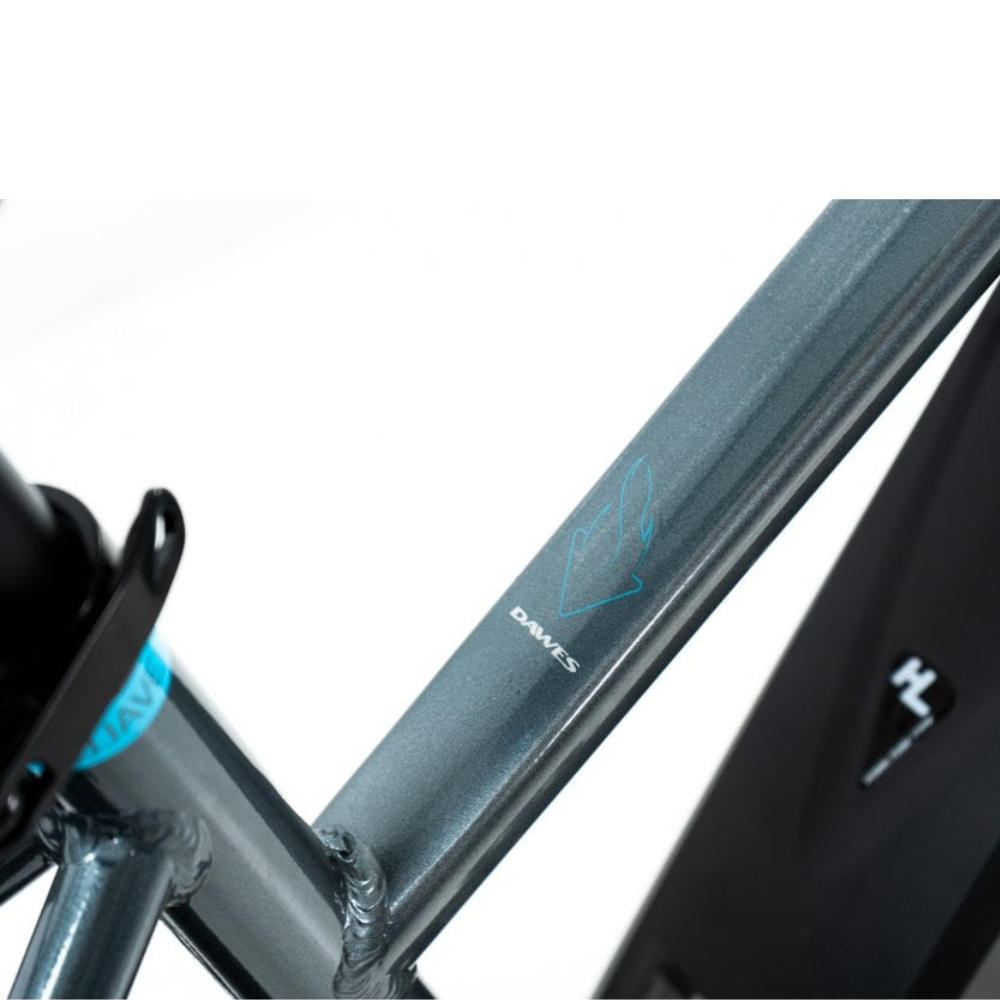

Frame

Alloy hybrid frame, Open / diagonal design

Frame Size

18"

Fork

Suspension fork, 50mm travel with disc mounts

Headset

1-1/8" threadless

Handlebar

Lo-Rise MTB handlebars, 620mm

Stem

Alloy adjustable quill, 90mm extension

Grips

Black

Gear Shifters

Shimano Thumbshifters, 3x7 speed

Front Derailleur

Shimano FD-TY510, 3 speed

Rear Derailleur

Shimano RD-TY300, 7 speed

Chain

KMC Z7

Cassette/Freewheel

Shimano 7 speed freewheel, 14-28T

Chainset

170mm crank, 48x38x28T chainrings

Number of Gears

21

Bottom Bracket

Cartridge type, 122.5mm

Pedals

Plastic hybrid, 9/16" axle

Brakes

Mechanical disc brakes, 160mm rotors

Brake Levers

Alloy lever including motor cut-off switch

Front Hub

36 hole, Alloy nutted

Rear Hub

Bafang 36V 250W motor

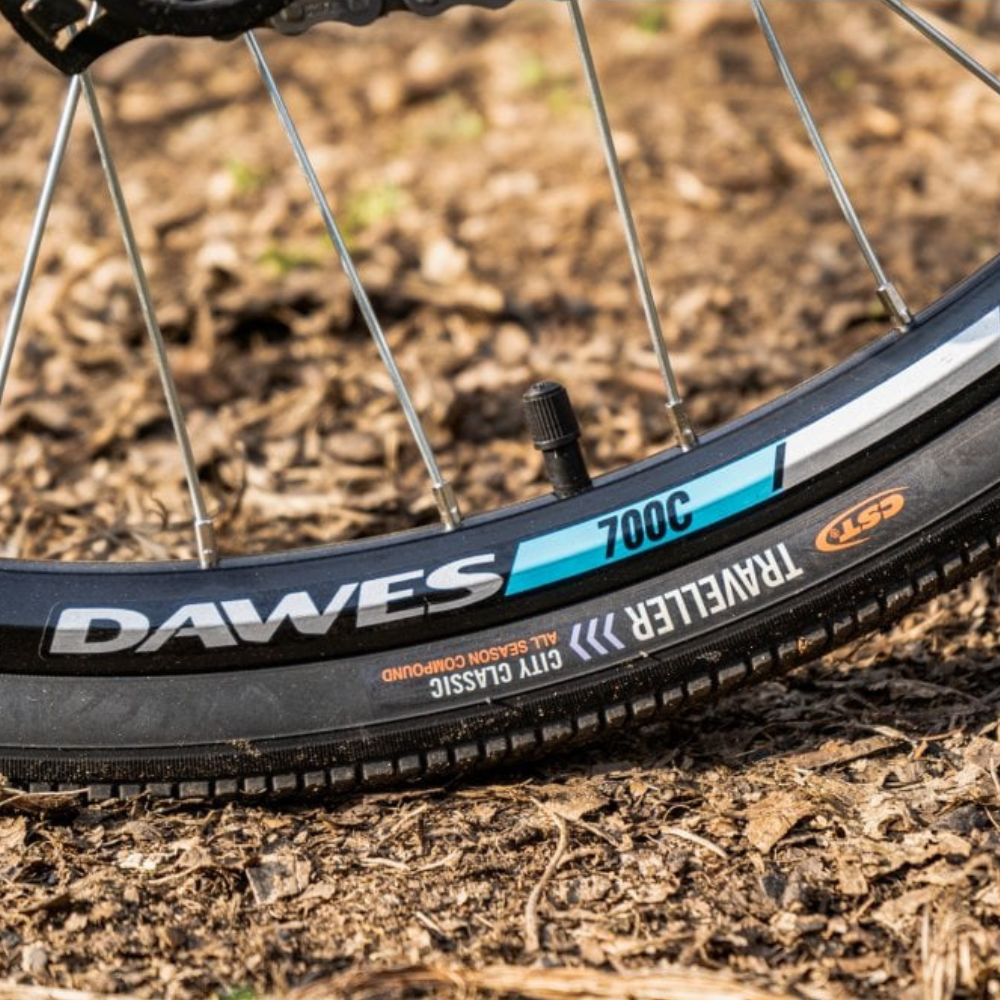

Rims

700c double wall alloy disc rims

Tyres

700 x 38C multi-terrain hybrid tyres

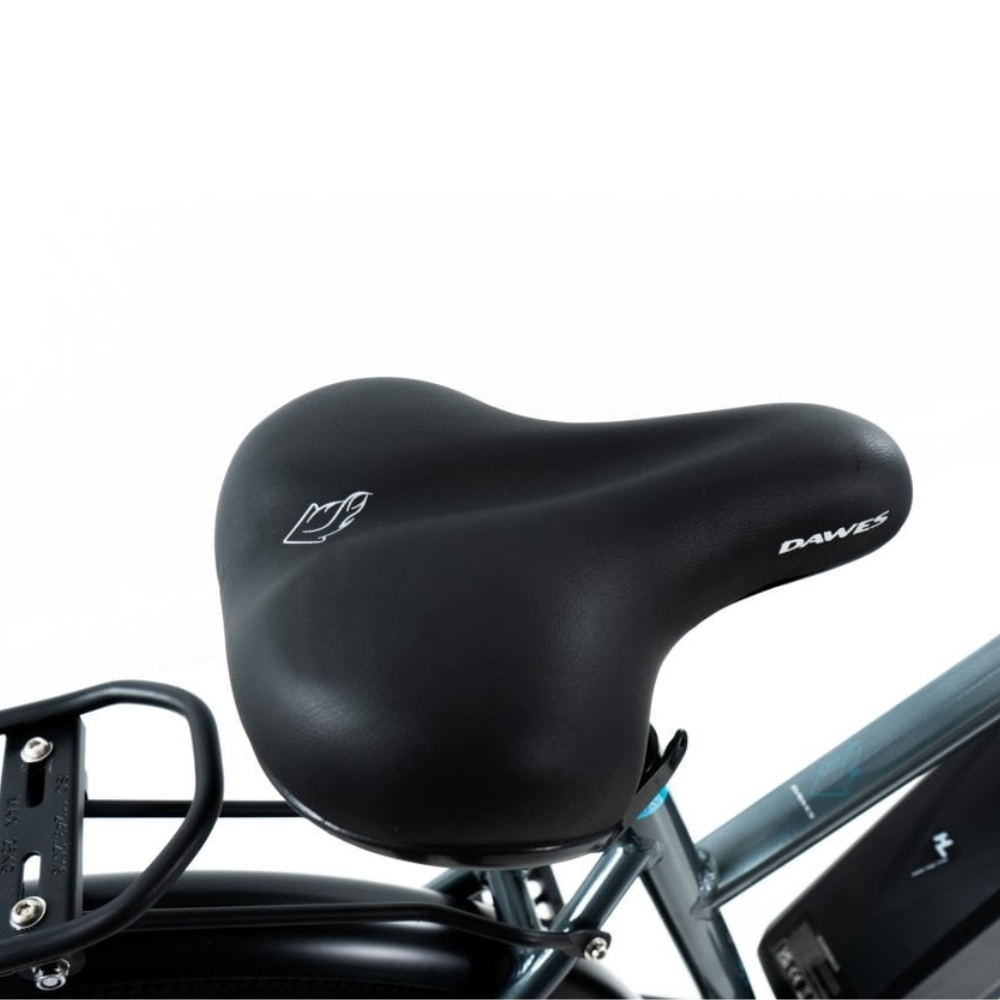

Saddle

Comfort hybrid saddle

Seat Post

27.2mm x 350mm

Mudguards

Full length, plastic

Kickstand

Alloy centre mount

Pannier Rack

Included

Weight

20kg

Bike Assembly Options

1)  85% Assembly Option

Available to Mainland UK addresses only, Estimated delivery time 2-5 working days.  We will dispatch orders received by midday that same day and our chosen courier will deliver direct to your door.  You will need to be in to sign for the delivery and bikes will be delivered boxed, 85% assembled.  Final assembly should be conducted by someone competent with the basic mechanics of a bicycle, if you require the help of your local bike shop please be aware the service will be chargeable

2) 99% Assembly Option

Electric bikes are delivered 'built and ready to ride'. This means one of our trained, expert mechanics has fully assembled your bike in our workshop, applied protective packaging and re-boxed it for our courier to deliver it to you. After delivery you only need to make minor adjustments.

On arrival please complete the following:

  1. Remove the electric bike and any documentation/spare parts boxes from the outer carton and take off any protective packaging.
  2. With the bike on the ground or in a work stand, loosen the bolts on the handlebar stem where it meets the fork, line the handlebars up to the front wheel and re-tighten.
  3. In some cases you may also need to adjust the handlebar angle. To do this please loosen the bolts on the front of the handlebar stem where it meets the handlebars and rotate the bars until it is in a comfortable position, then re-tighten bolts.
  4. Your left pedal will already be fitted, so take the unfitted pedal and screw it clockwise into the threaded hole on your crank arm. We trial fit these prior to dispatch to ensure there is no cross-threading, so please take extra care when fitting.
  5. Adjust your saddle height if necessary by loosening the seat clamp and adjusting it to a suitable height. We recommend that your knee is slightly bent at the bottom of each pedal stroke whilst sat comfortably.
  6. Double check that every bolt you have adjusted is tight.
  7. We recommend charging your ebike to full capacity before you ride it to help the long-term health of your battery. To see if there is sufficient level of charge please check the handlebar display.

Please note - we complete the same pre-departure assembly on folding electric bikes, but dispatch them folded in their original box.

If you require the help of your local bike shop, please be aware that the service will be chargeable.
