Touroll J1 Step Thru 27. 5" Electric Trekking Bike, 2024 Model
Touroll J1 Step Thru 27. 5" Electric Trekking Bike, 2024 Model
- Free UK Mainland Delivery Over £500
- Our Terms and Conditions
- Our Delivery and Returns Policy
Touroll J1 Step Thru 27. 5" Electric Trekking Bike
Experience ultimate trekking with the Touroll J1 ST Trekking E-Bike. Weighing 26.9kg, it features a 27.5"x17.5" frame, 680mm handlebar, and adjustable saddle height (32.3"-40.2"), suitable for riders 155-195cm tall. Powered by a 36V hub motor and 15.6Ah battery, it offers up to 100km range in assist mode, with a Shimano 7-speed derailleur and mechanical shock absorber for a smooth ride.
Equipped with mechanical disc brakes, CST tyres (27.5x2.1"), and IPX4 waterproof rating, it ensures excellent grip and reliability. The 1.8" LCD displays speed, battery level, and trip distance, with features like pedal assist levels (12-25 km/h) and walk mode (6 km/h). Perfect for all-weather trekking, the Touroll J1 ST is your ideal companion. Plus, the extra throttle e-bike set is included in the package.
If you have any questions relating to above you can also email our support team
Plus FREE delivery to UK Mainland when you spend over £500 from Power Drive Bikes today.
What's Included?
- Touroll J1 ST 27. 5" Electric Bike, Trekking
- Extra Throttle E-Bike Set
- Tool Kit
- Charger
- User Manual
- Throttle Control
- FREE delivery to UK mainland
- Manufacturers One year warranty
- 14-day FREE Insurance
Hub Drive & Torque Rating
The Touroll J1 ST Trekking E-Bike is a rear wheel hub drive bike. This means that the drive motor is positioned in the rear wheel hub of the bike and has specific rider qualities for that type of drive.
Torque Rating - 45 Nm - Provides good power performance
Further information on the drive type benefits of electric bikes is available in ‘A Guide to Electric Bike Motors and Drive Types’ in our guides section of the home page.
Further information on the torque ratings of electric bikes is available in 'A Guide To Understanding Torque in 250W Electric Bike Motors' in our guides section of the home page.
User Manual
Please find the Touroll U1 Electric Mountain Bike User Manual Here
Specifications
Net Weight: |
26.4kg |
Unfolded Size: |
1820x680x1110mm |
Size of Frame: |
27.5"x17.5" |
Length of Handlebar: |
680mm(26.8") |
Height of Saddle (from the ground): |
32.3"-38.6" |
Recommended Rider Height: |
160-200cm (around 5' 3"-6' 7") |
Max Load of Bike: |
120kg |
Cut-off Speed: |
25km/h |
Max Range: |
100km (Assist Mode) |
Pedal Assist Levels: |
12/15/18/21/25 km/h |
Walk Mode: |
6km/h |
Waterproof Level: |
IPX4 |
Material: |
STL |
Braking System: |
Mechanical Disc Brake & E-Brake |
Suspension: |
Mechanical Shock Absorber with a Lockout |
Type: |
Hub Motor |
Rated Voltage: |
36V |
Max Output Torque: |
45N.M |
Derailleur Brand: |
Shimano |
Number of Gears: |
7 (Rear) |
Battery Capacity: |
15.6Ah |
Voltage: |
36V |
Charging Time: |
6-8h |
Power Capacity: |
561.6Wh |
Protection System: |
Yes |
Charger Input: |
100-240V, 2.0A |
Charger Output: |
42V, 2.0A |
Tyre Brand: |
CST |
Tyre Size: |
27.5x2.1" |
Tyre Type: |
Pneumatic Rubber Tires |
Tyre Pressure: |
40-70PSI |
Best Tyre Pressure: |
45-65PSI |

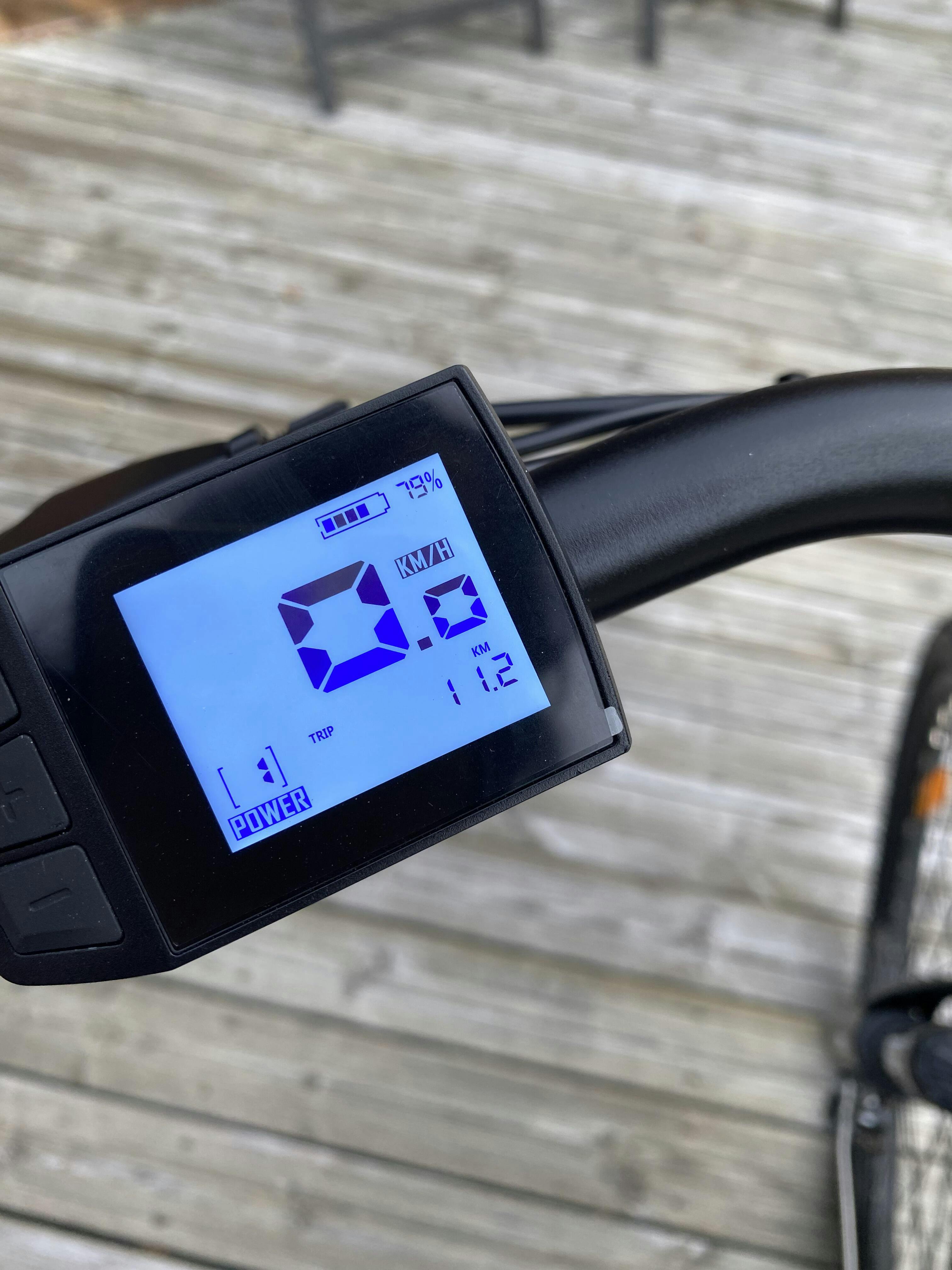

Display Size: |
1.8" |
Display Type: |
LCD |
Display Information: |
Speed, Battery Level, Trip Distance/Odometer, Assist Level, Walk Mode, Light Mark, Brake Mark |
Display Functions: |
Power on/off, turning light on/off, shifting assist levels, activating walk mode, removing trip data, setting screen timeout, etc. |
Warranty
At Touroll, we pride ourselves on delivering a service that's simple, dependable, and efficient for all products covered under our warranty. Below, you'll find a breakdown of warranty periods for our various products and accessories.
Components |
Warranty |
Frame |
3 years |
Front Fork |
1 year |
Controller |
1 year |
Motor |
1 year |
Charger |
1 year |
Battery |
6 months |
LCD Display |
6 months |
Chainwheel |
6 months |
Freewheel |
6 months |
Brake Assembly |
6 months |
Gear Shifter |
6 months |
Rear Derailleur |
6 months |
Front Light |
6 months |
Kickstand |
3 months |
Pedal |
3 months |
Others |
14 days |
Notes: the following conditions are not covered by the warranty
1. Water damage of the battery, motor and controller.
2. Man-made damage, self-modification, collision damage of spare parts, etc.
3. Tire puncture by sharp objects.
Our network of distributors, partners, sellers, and resellers are equipped to handle after-sales services directly for their customers. If you encounter any warranty-related issues with your Touroll product, simply reach out to the seller from whom you made the purchase. Be sure to provide all relevant order details, such as warranty cards, invoices, and receipts.
-
The order number from your online purchase through an authorized Touroll reseller.
-
A sales invoice.
-
A dated sales receipt from an authorized Touroll reseller.
For claims regarding shipping damage:
Upon receiving your order, we advise promptly inspecting the products for any signs of damage. Claims for freight damage must be made within 14 days of receiving the product. It's crucial to note any damages on the Bill of Lading before accepting the shipment. Additionally, we recommend documenting any damage with photographs and retaining all packaging and paperwork until the inspection process is complete.
If you need to report a damage claim, please contact our Customer Support team within 14 days of delivery for instructions on return, replacement, or refund. You can do so by submitting a ticket at support@touroll.com.
When it comes to warranty claims:
Buyers are required to provide sufficient proof of purchase, including an order number, sales invoice, or dated receipt from an authorized Touroll reseller. In some cases, multiple forms of proof may be necessary.
A detailed description of the defect must accompany the warranty claim, along with visible proof of the defect and the item's serial number (if applicable). Touroll will document any troubleshooting steps taken by the buyer and may request the return of the defective product for quality inspection.
Please ensure that the defective product is returned in its original packaging or approved packaging provided by the dealer.
It's important to note that warranty claims may be voided in certain situations:
-
The product exceeds the warranty period.
-
The product is lost or stolen.
-
The product is obtained for free or as a complimentary item.
-
The product is used in inappropriate conditions or manners, including but not limited to: drops, exposure to extreme temperatures, water damage, or improper operation.
-
The product has been altered from its original state, such as through modifications.
-
The product has been used with accessories that are incompatible.
-
Insufficient proof of purchase is provided by the buyer.
-
Unsupported software or firmware has been installed on the product.
-
Damage caused by the customer incurs repair and shipping costs for which the customer is responsible.
-
Customers send personal items to Touroll instead of Touroll products.
-
The product is purchased from an unauthorized reseller.
If your issue isn't covered by the warranty, replacement parts are available for purchase directly from us at competitive prices. If you can't find the parts you need on our website, please contact us at support@touroll.com for assistance.
For repairs:
To request a repair, simply email us at support@touroll.com, providing the serial number of the product, a description of the issue, any relevant photos or videos, and a copy of the invoice (in PDF format). We'll aim to respond within 24 hours of receiving your email.
